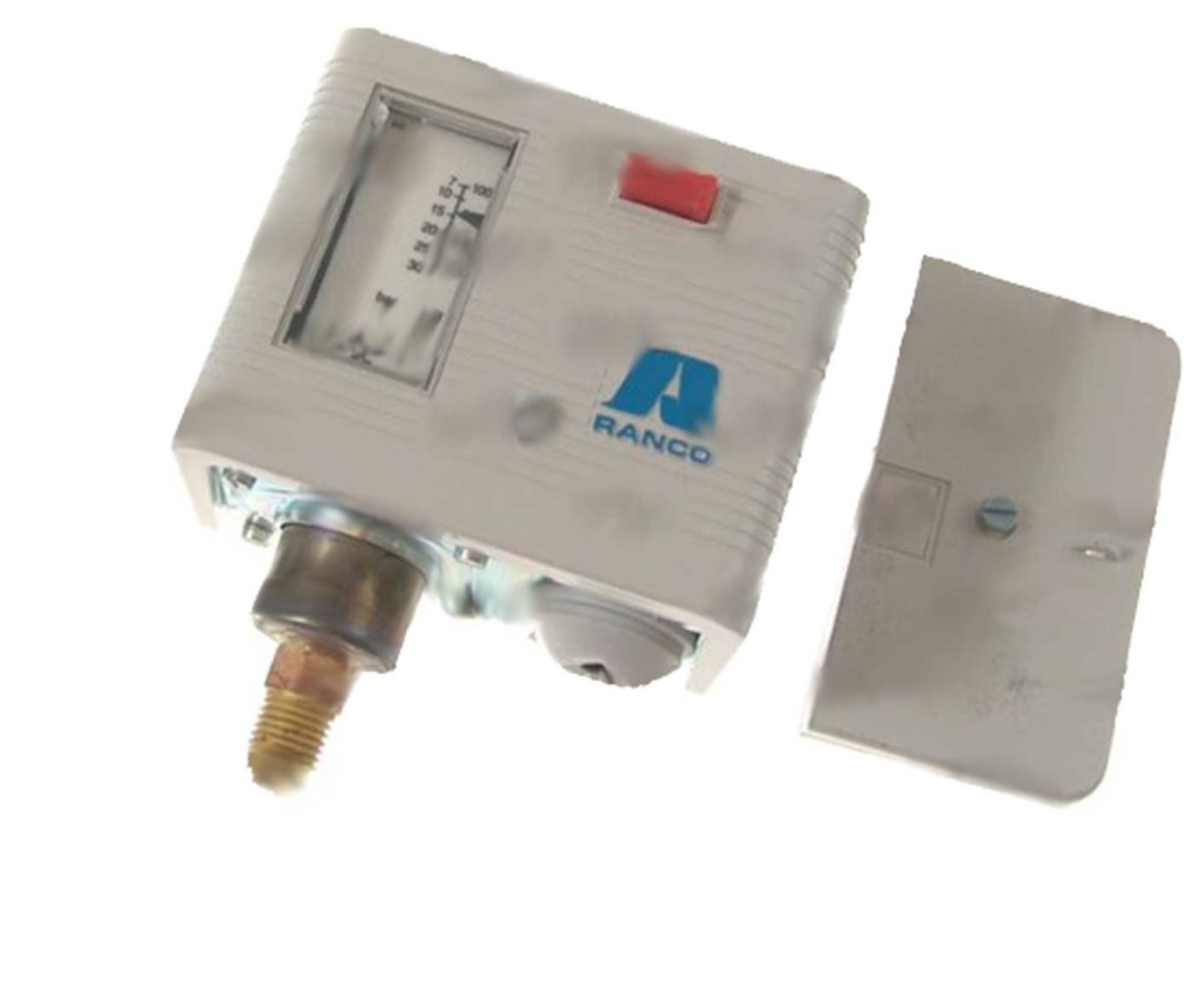

Ranco high-pressure pressure switch, 6.0 – 32.0 bar, differential pressure 5.0 bar fixed, manual, flare 1/4" SAE

Ranco high-pressure pressure switch, 6.0 – 32.0 bar, differential pressure 5.0 bar fixed, manual, flare 1/4" SAE

The Ranco high-pressure pressure switch with a fixed differential pressure setting (5.0 bar) was specifically developed for safety-critical applications in refrigeration and HVAC systems . In the high-pressure range between 6.0 and 32.0 bar, it ensures reliable shutdown in the event of overpressure – for example, to protect compressors or detect refrigerant leaks .

The manual reset prevents accidental restart of the system and significantly increases operational safety. This makes the switch ideal for systems with high safety requirements in commercial or industrial applications.

Thanks to the 1/4" SAE flare connection, the pressure switch is quick and easy to install and can be easily integrated into existing refrigeration and air conditioning systems.

✅ Your advantages:

• Reliable high-pressure safety switch with fixed shutdown

• Manual reset – prevents automatic restart

• Precise differential pressure: fixed at 5.0 bar

• Compatible with refrigeration systems, HVAC systems & compressor protection

• Easy installation thanks to 1/4" SAE flare connection

• Robust design for commercial and industrial refrigeration technology

🔧 Technical data:

• Brand: Ranco

• Type: High pressure pressure switch

• Pressure range: 6.0 – 32.0 bar

• Differential pressure: 5.0 bar (fixed setting)

• Reset: Manual

• Function: NC (Normally Closed) / Safety switch

• Connection: 1/4" SAE flare

• Applications: Refrigeration & air conditioning systems, compressor protection, commercial refrigeration, HVAC

Weight: approx. 0.25 kg
Scope of delivery: 1 × Ranco high pressure pressure switch with manual reset
